User Manual

• W: 27.3 cm
• H: 15.6 cm
• D: 1.2 cm

The PIERRE Wave system is a user-friendly solution for integrating and managing smart devices through a central platform. The system consists of the following components:

A - Required Elements:

1. PIERRE Wave Products: These smart devices, including lighting, thermostats, sensors, and other appliances, connect wirelessly to the PIERRE Wave Gateway. They provide essential functions and capabilities for the system.

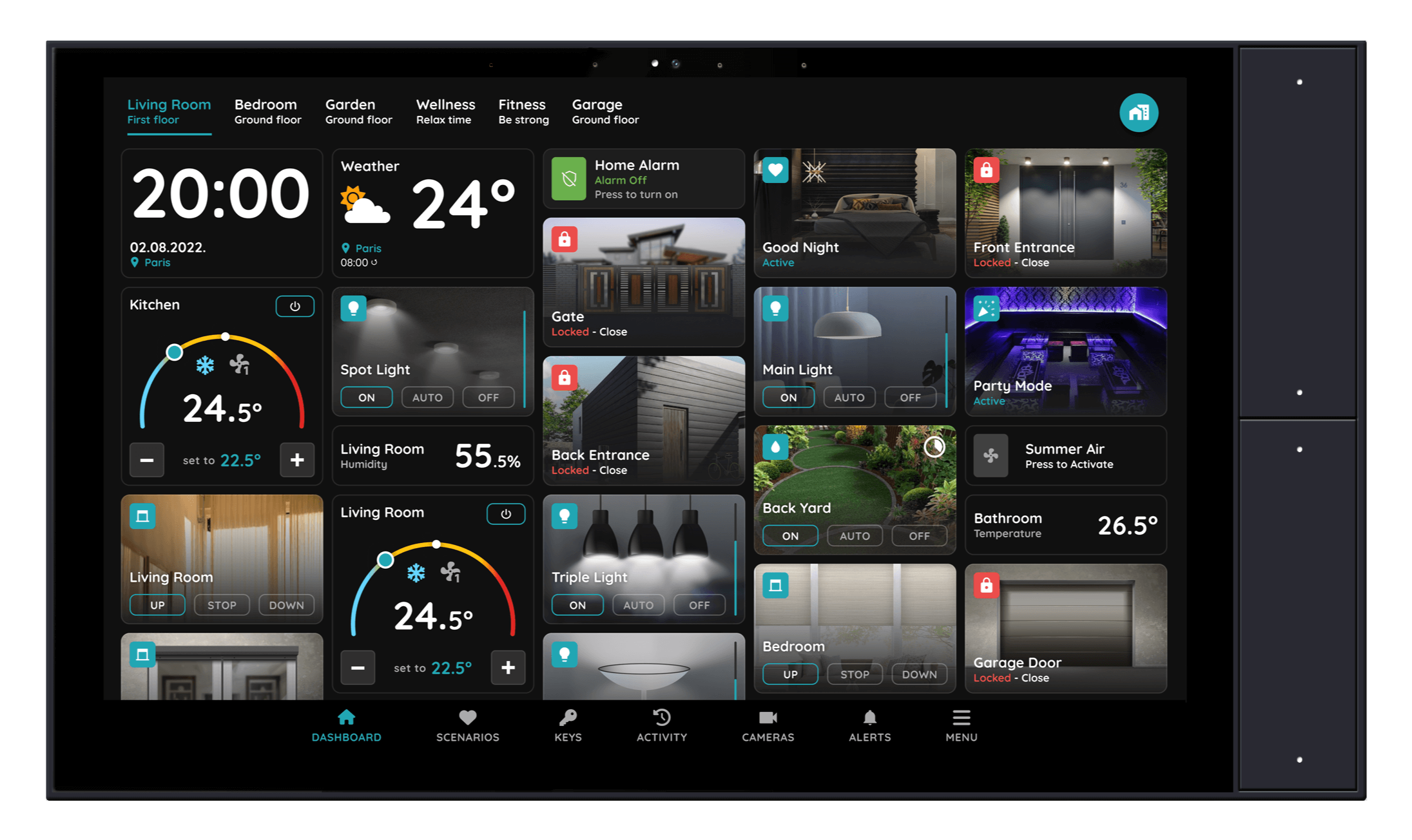

2. PIERRE Wave Gateway: The central unit linking all PIERRE Wave devices, the gateway manages communication and data exchange, ensuring security and stability. It supports remote access and control, with the default Berlin display interface, though users can choose any PIERRE display model.

B - Optional Elements:

1. Mobile PIERRE App: This app allows users to manage and monitor the system from their smartphone or tablet, offering real-time updates and remote access. It provides convenience but is not necessary for basic system operation.
2. Router: An optional component that enables internet connectivity, allowing devices to be accessed and controlled remotely.

3. System Operation: The gateway can connect to the router via Wi-Fi or LAN for internet connectivity, enhancing remote management capabilities. PIERRE Wave products communicate wirelessly with the gateway, which acts as the central hub. This bidirectional communication allows data to flow both ways, enabling users to send commands and receive status updates through the Mobile PIERRE App. The app facilitates effective management and real-time feedback on device statuses.

1. Microphones *4
2. Light sensor
3. Camera
4. Scene switch
5. Built in ladar sensor

1. Standard model
2. Temperature and humidity sensor
3. 2W speaker
4. Type C

1. Output live wire 1 - max 200W
2. Output live wire 2 - max 200W
3. Ethernet RJ45 port

Separate the base from panel

Fasten the base to the wall electrical box with mounting screws (M4x25 or M4x45)

1. 86x86mm Standard wall box

Fix the smart panel back to the base with mounting screws (M2x4)

Note: The screws should not be fixed too tight during installation in case any deformation or damage to the screen or hardware.

If the smart panel is not flat after installation, do not press the screen violently. Please check the wall box and base installation firstly.

1. Wall
2. Wall Box
